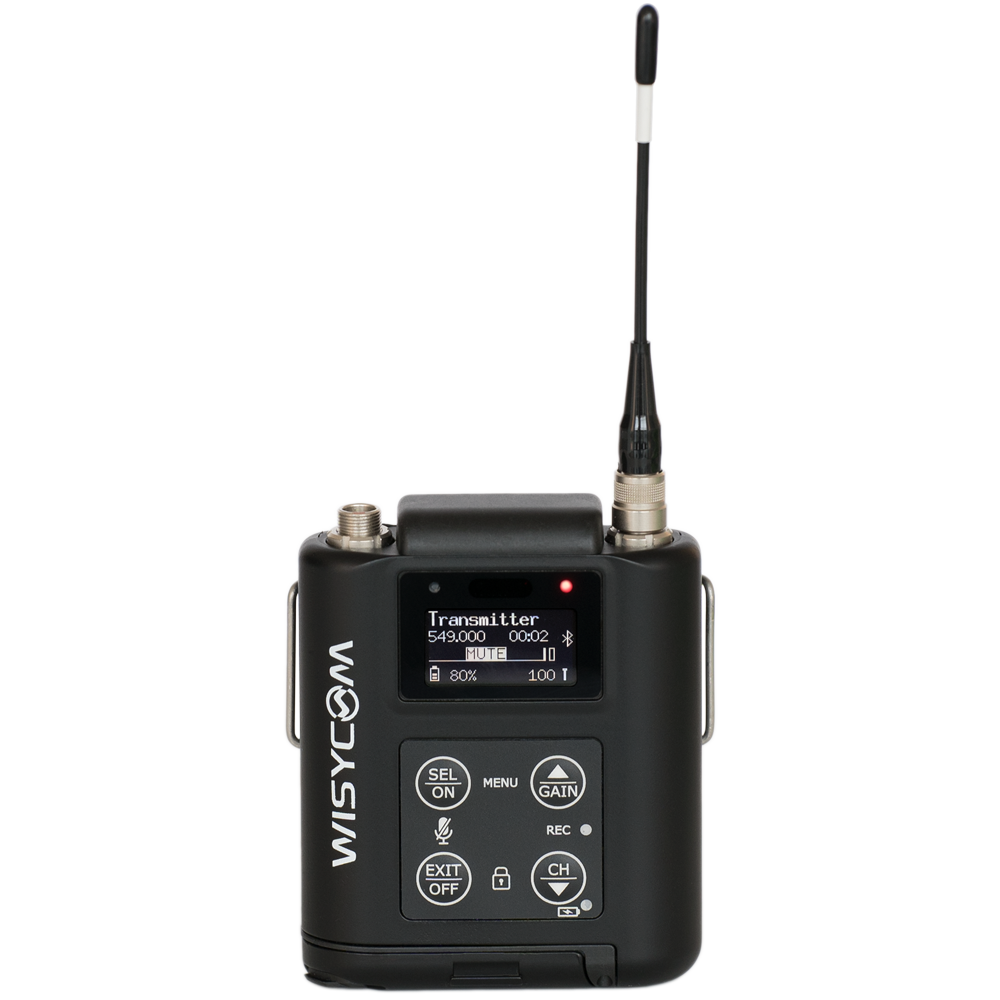

Wisycom MTP60 Double Battery Beltpack Transmitter (EUX)
MTP60 is a pocket transmitter specially designed for professional wireless microphone applications.
(EUX) 470-832 MHz, Max power 100mW
FEATURES
The multi-band MTP60 currently has the widest tuning range of any wireless transmitter on the market (470 to 1075MHz)
Monitor & control with Bluetooth via Wisycom Manager software or mobile device apps to adjust parameters in real time
Dedicated hardware allows accurate real time position monitoring with advanced user interface.
Patent No. US AE-204460
Patent No. IT A-211495
Advanced linear technology (L20mW) eliminates intermodulation distortion for more robust signal
Embedded recorder to record directly on the MTP60 memory card and integrated Linear Time Code decoding
Enhanced robustness against self-interferences and antenna performances thru a proprietary “intermodulation cancellation” circuit
An integrated haptic engine that gives tactile feedback with different vibration patterns
FPGA based signal processing allows easy switching between wide and narrow band operation
Miniature design with flexible PCB (no connectors) for extended reliability
New ENS compander for a totally clear sound
Powering with 2 x AA battery (Alkaline, NiMh, Lithium) or MPRLBP lithium battery (5.55 Wh)
Bluetooth interface and mobile app allows full control from mobile or tablet
Integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
Bluetooth 5 Long Range (Class 1, 100mW) with the MRK16 as a bridge allows remote control the MTP60 over hundreds of meters
Front panel buttons to quickly enter menu thanks to its multiple shortcut combinations
Max input level 26dBu (15.5 V clipping) to connect directly to mixers and instruments
48V phantom power to use wired mic thru the PHA60 accessory
